Mud Balance
| SPECS |  Westernex Muds |
|---|---|
| Brochure | Westernex Drilling Supplies |
| UOM |
Features & Benefits
The density or weight of a given volume of liquid is determined by using a mud balance. The balance is constructed so that the fixed volume cup at one end of the beam is balanced by a fixed counterweight at the opposite end, with a sliding weight rider free to move along the graduated scale. A level bubble mounted on the beam indicates when the system is in balance.
The full-sized metal mud balance is imprinted with four density scales with the following ranges:
- 6.5 23.0 Ibs / gal
- 0.79 2.72 specific gravity
- 49 172 Ibs / ft³
- 340 1190 psi-1000ft
- Size: 550 × 110 × 100mm
- Weight: 1.9kg

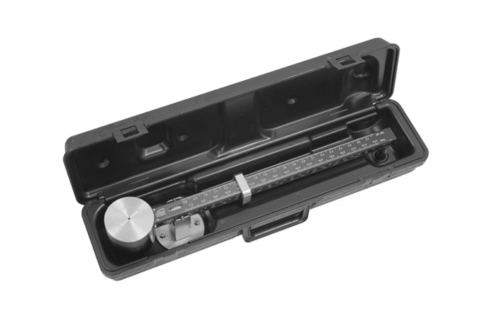

The balance may be readily transported in a lightweight carrying case fitted for its usage and storage.
