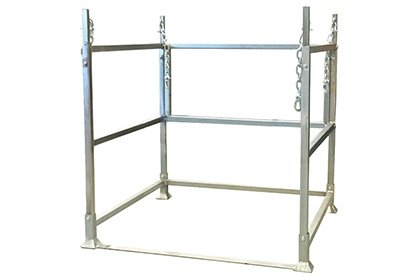

Bulk Bag Cage

Designed to safely hook open a bulk bag for filling. This lightweight frame provides an effective solution for collecting recycling, industrial, excavation and site waste or as a low cost bulk material filling station.

• Dimensions: 1350 x 1250mm
• Adjustable height settings: 8
• Unit height: 1270 – 1970mm
• Unit weight: 70kg
• Allows bulk bags to be held wide open for ease in filling
• 4 adjustable bag restraining chains provided to position bag at optimal height
• 8 adjustable height settings to suit larger bags
• Zinc finish

Supplied standard as ‘flatpack’ for on-site assembly.

Duffle Top (DT), Spout Top (ST), Closed Bottom (CB), Spout Bottom (SB)
Other sizes available on request.
All our manufacturers abide by the ETI code and are SWL rated.

Duffle Top (DT): A Duffle Top is an extension of the bag itself and is folded down to make the top of the bag completely open.

Spout Top (ST): A spout top is primarily when bags are being filled by a machine.

Flat/Closed Bottom (CB): The flat bottom bag is exactly that, a closed bottom. It is completely shut off with no openings for product to escape at all.

Spout Bottom (SB): The spout bottom has a spout on the bottom of the bag that, when being filled, is tied up to give the bag a smooth, flat bottom. The Spout is used to discharge the product from the bag by pulling open the spout and allowing the product to flow out. The spout can be used to only empty a portion of the bag (by tying it off ) leaving the bag partly filled, or it can be used to slow the rate at which the bags empties.
