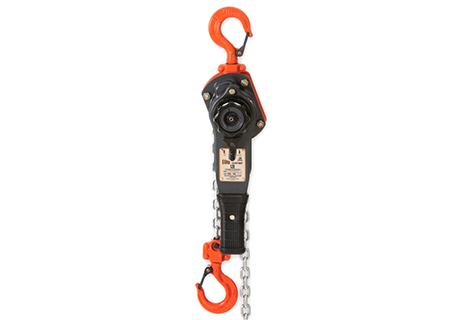

LEVER HOIST ELITE 1.5M LONG INDUSTRIAL

Features & Benefits

A heavy-duty manually operated chain device using a series of gears provides a mechanical advantage to lift and lower significant loads.

• This is a high-end Industrial quality lever hoist designed for rugged and robust applications.
• The Elite Lever Hoist (Industrial) range is supplied with OVERLOAD PROTECTION as a standard feature.
• The Elite Lever Hoist (Industrial) range includes a standard gasket feature to safeguard and prevent dust ingress from forming a grinding paste to greased moving parts. This has been designed to combat dust issues endemic to harsh conditions such as mining environments. A WORLDWIDE FIRST.
• The Elite series meets AS1418.2, AS2321, and EN-13157.
• Traceability markings on load chain – “Tri-marked with LINQ brand, G80 mark, batch reference number’’.
• Standard 1.5m lift height but can be supplied with any lift height.
• The bottom hook is supplied with a thrust bearing for AS/ NZS compliance (the purpose being to relieve twist stresses in the load chain better).
• The Elite Lever Hoist (Industrial) is a 7-BEARING design, for even load spread, and efficiency of internal parts movement, ensuring a long service life and resulting in a class-leading lower effort rating per ton – less energy to lift a load.
• Standard Lift Height: 1.5M
